Camera Head

• Size: Φ50mm x 153mm
• Chip: Aptina 0130, 1/3″ CMOS, 1.3MP
• Lens: 5G + IR650, M8
• Sensor: 1/3″ HD CMOS, 1.3MP
• Protection: Sapphire lens, waterproof IP68 (10 bars)
• Tilt/Pan: 180° tilt, 360° pan (infinite)
• Camera Angle: 120°
• Light: 6 adjustable high-brightness LEDs
• Reset: Automatic probe reset

Monitor

• Screen: 10″ IPS, 1280×720 resolution
• Control: PT rotating camera joystick
• Recording: HD video (720P)
• Features: Character implantation with USB Bluetooth keyboard, digital counter (error < 1%)
• Inputs: 3 video input interfaces
• Microphone: Manual recording key
• Outputs: Audio and video output with camera function
• Battery: 8800mAh, 8 hours continuous use

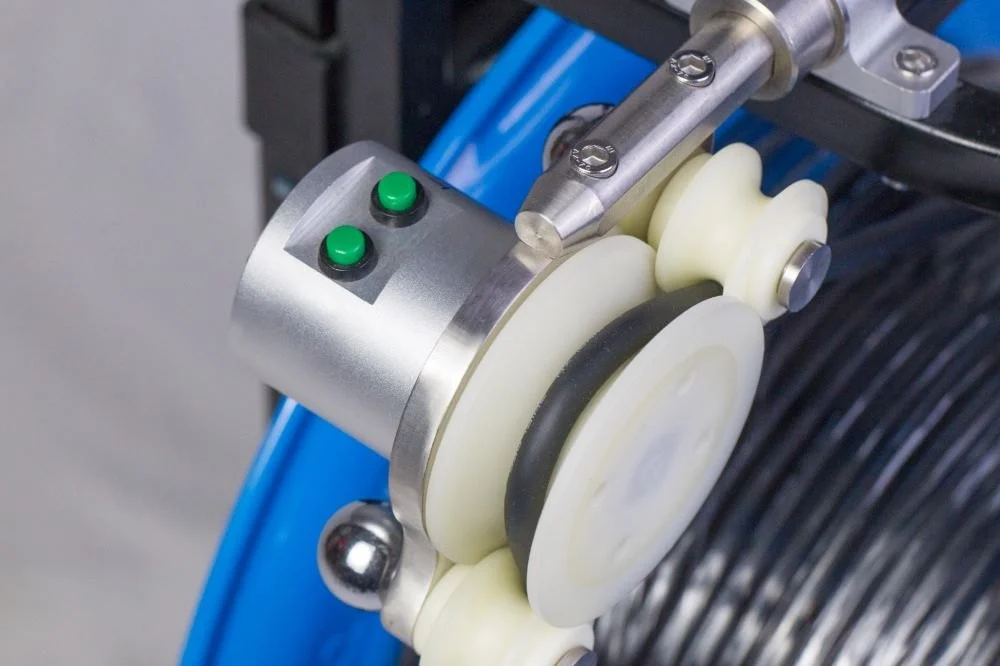

Cable

• Type: Flexible coaxial
• Length: 200m (optional 100m to 200m)
• Diameter: 7mm
• Digital Counter: Error < 1%
• Dimensions: 480 x 340 x 250 mm (H x L x W)
